Elevator Cabinet Frame Controllers (Hydraulic, 2100, Revizion)

Get the full digital bundle and Solidworks files for a 2100 mm Elevator Cabinet Frame Controller (Hydraulic, Revizion). Download includes same parts for all types, contemporary and clever design, fewer components than the rest of the market (metal parts, screws).

The designs allow for easy assembly, disassembly and transport, a bolted construction concept and one person working alone without special construction knowledge or welding required, supporting left or right opening with the same accessories.

The bundle includes:

• CAD Drawings: 2D and 3D models (.edrw, .pdf), 3D renders (.png)
• Solidworks Files: Parts(.SLDPRT), Assemblies(.SLDASM), Drawings(.SLDDRW)
• Production files: Bill of Materials (.easm), Laser cutting, punching & CNC bending (.step, .dxf)

CABIN Frame 2100:

• Dimensions, max (mm): Height: 2100 mm, Width: 900 mm, Depth: 450 mm
• Dimensions, max (inches): Height: 82.68'', Width: 35.43'', Depth: 17.72''

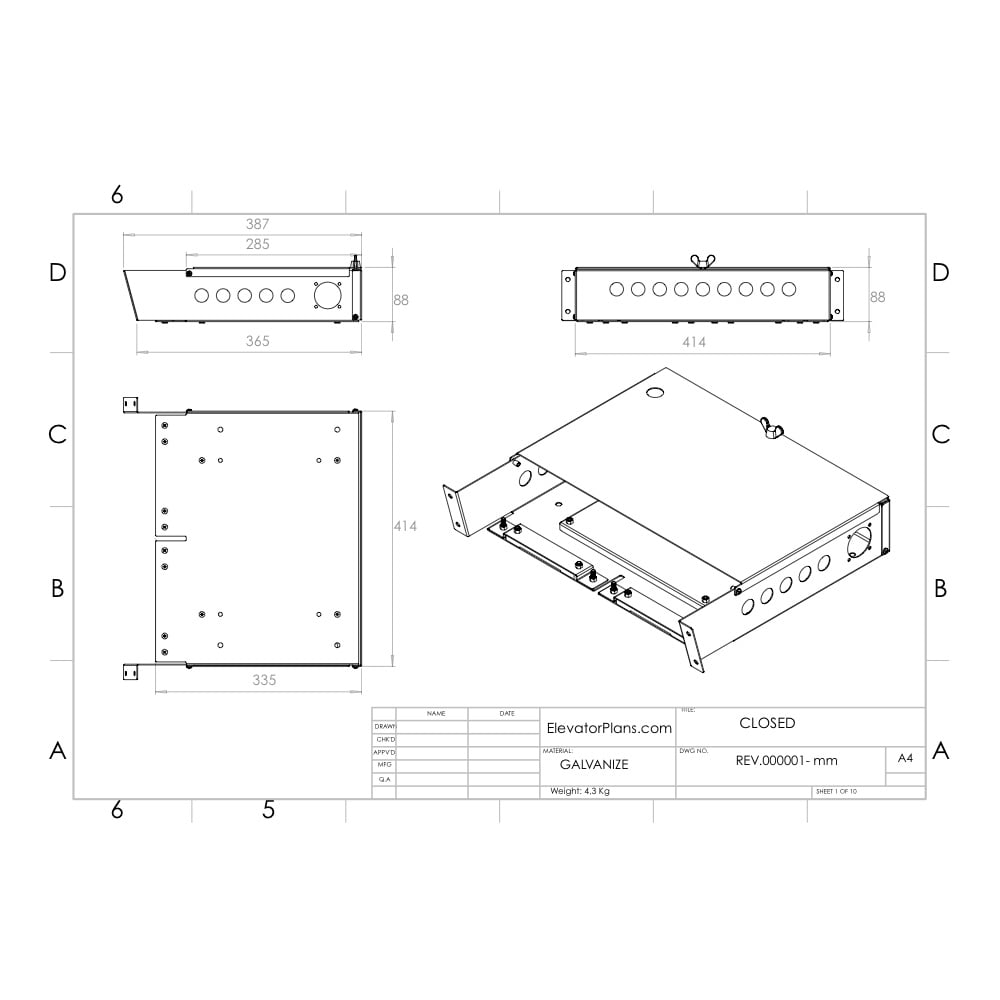

REVIZION Frame:

• Dimensions, max (mm): Height: 88 mm, Width: 414 mm, Depth: 387 mm
• Dimensions, max (inches): Height: 3.46'', Width: 16.32'', Depth: 15.24''
