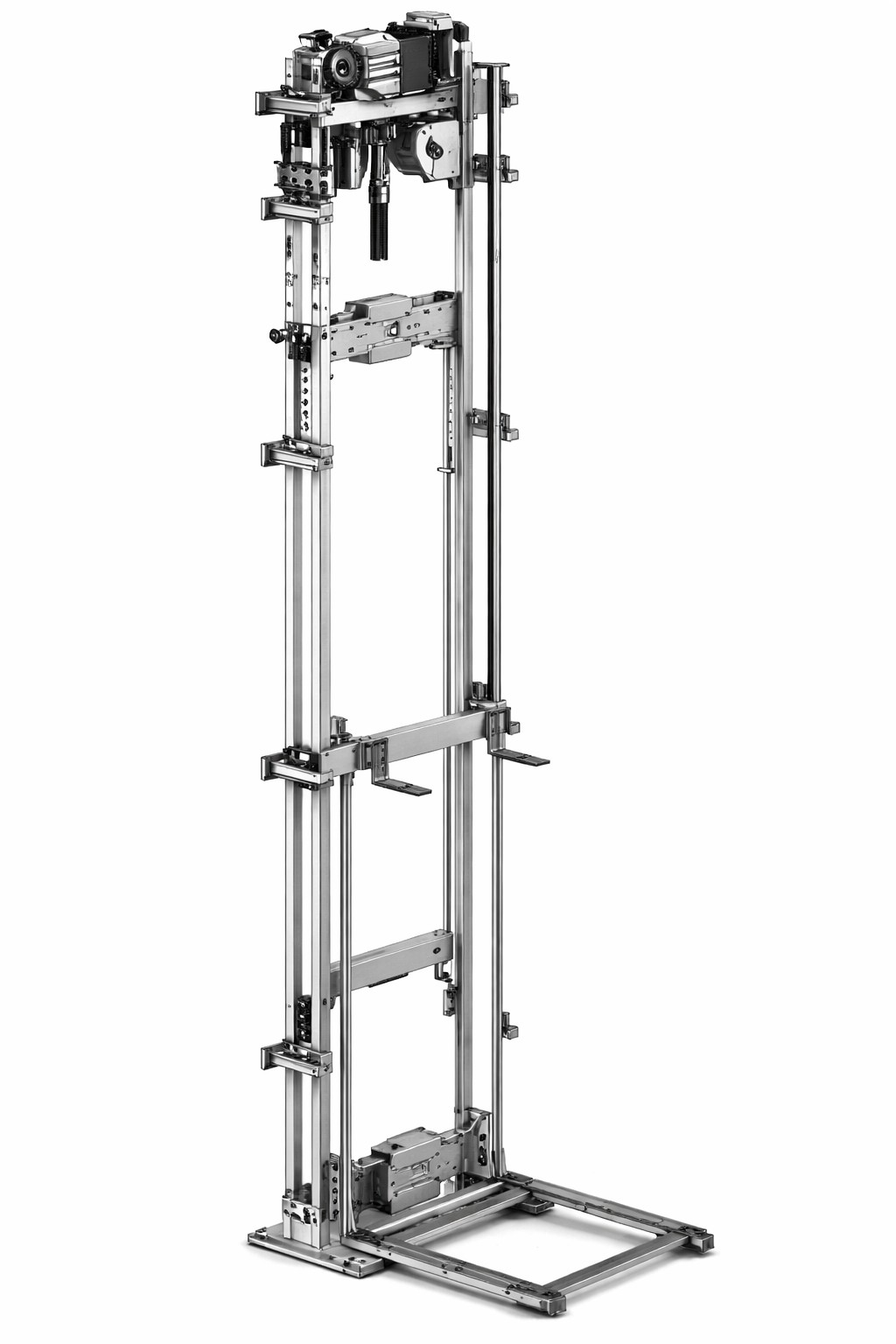

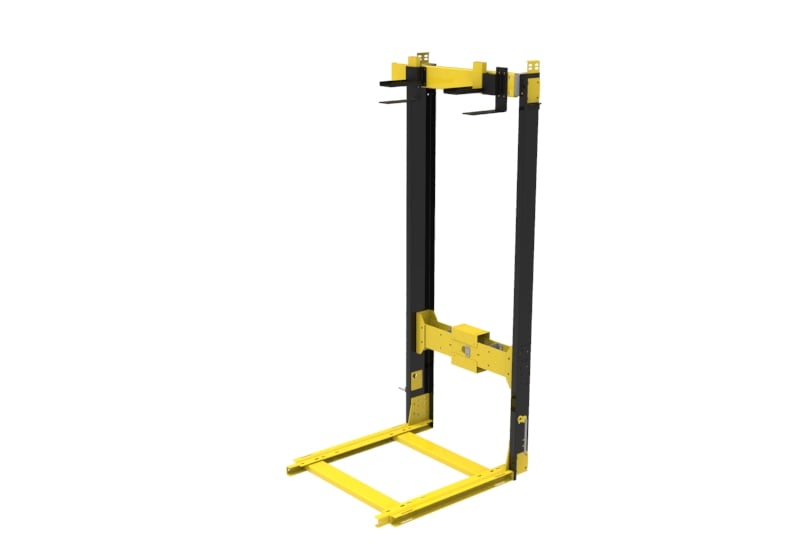

Elevator Homelift Cabin Frame MRL Type L

Get the full digital bundle and Autodesk Inventor for Homelift Cabin Frame MRL Type L located in the hoistway. Download includes same parts for all types, contemporary and clever design, fewer components than the rest of the market (metal parts, screws), in accordance with 81.20/81.21 and 81.1/81.2.

The designs allow for easy assembly, disassembly and transport, a bolted construction concept without special construction knowledge or welding required.

The bundle includes:

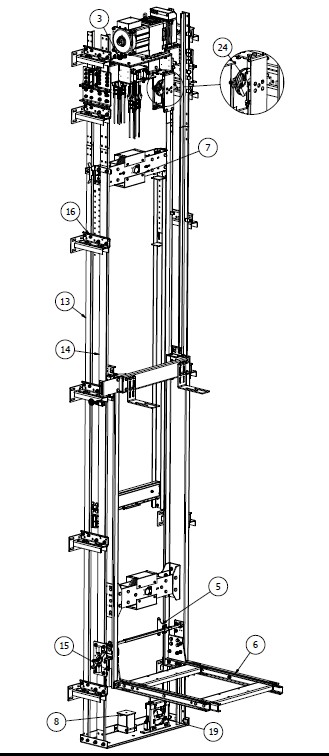

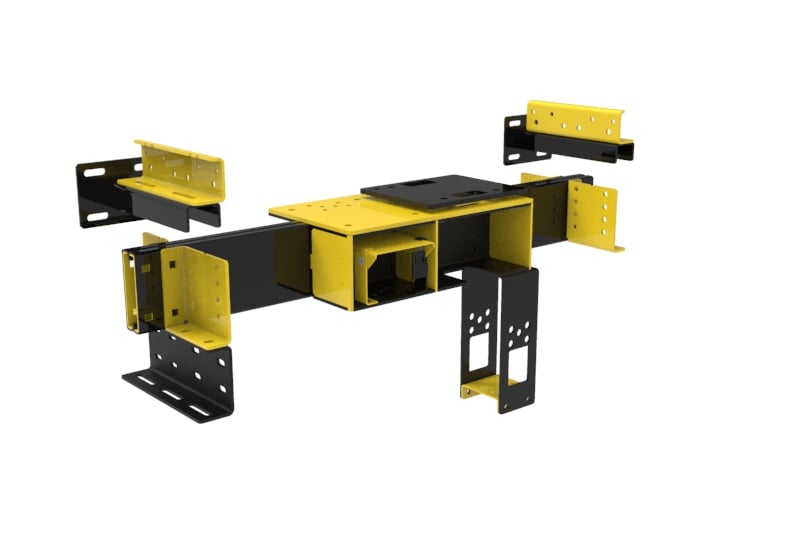

• CAD Drawings: 2D and 3D models (.edrw, .pdf), 3D renders (.png)
• Autodesk Inventor: Parts(.IPT), Assemblies(.IAM), Drawings(.IDW)
• Production files: Bill of Materials (.easm), Laser cutting, punching & CNC bending (.step, .dxf)
