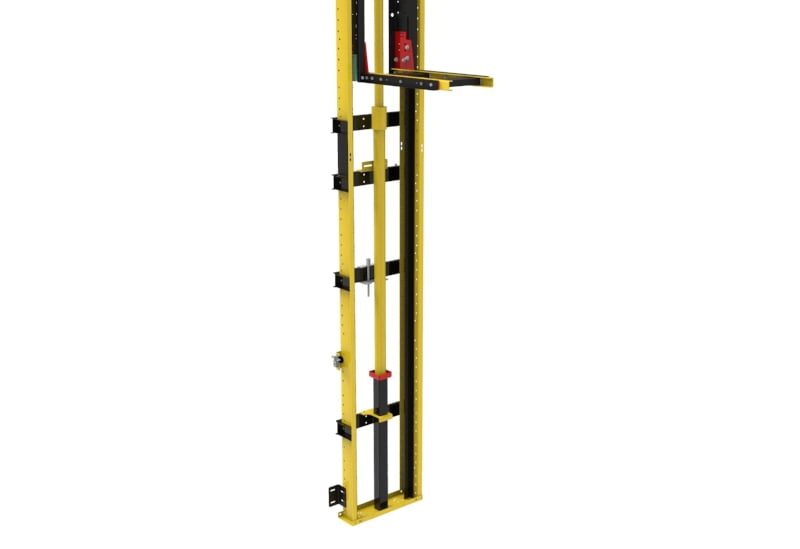

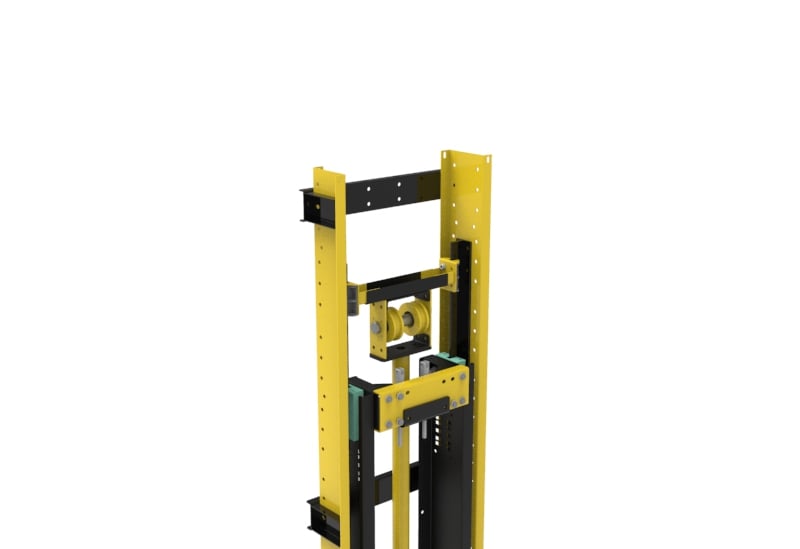

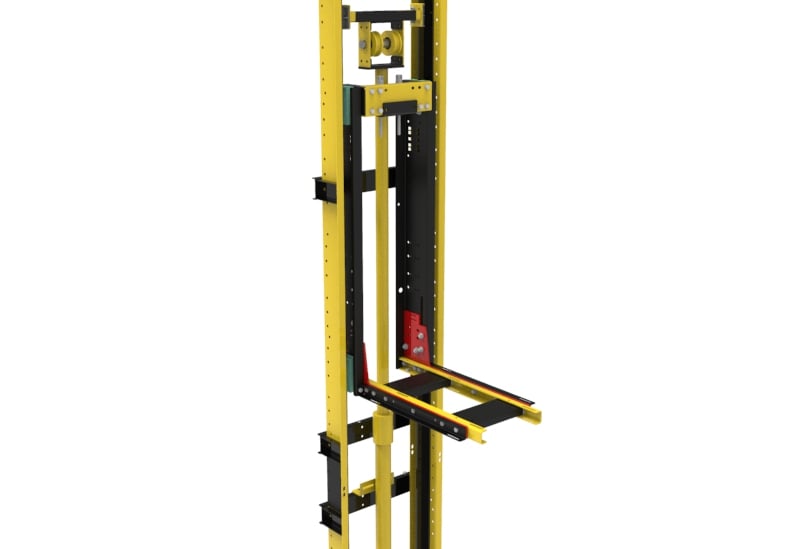

Elevator Homelift Cabin Frame Hydraulic

Get the full digital bundle and Autodesk Inventor for Homelift Cabin Frame Hydraulic located in the hoistway. Download includes same parts for all types, contemporary and clever design, fewer components than the rest of the market (metal parts, screws), in accordance with 81.20/81.21 and 81.1/81.2.

The designs allow for easy assembly, disassembly and transport, a bolted construction concept without special construction knowledge or welding required.

The bundle includes:

• CAD Drawings: 2D and 3D models (.edrw, .pdf), 3D renders (.png)
• Autodesk Inventor: Parts(.IPT), Assemblies(.IAM), Drawings(.IDW)
• Production files: Bill of Materials (.easm), Laser cutting, punching & CNC bending (.step, .dxf)
