Elevator Cabin Telescopic Apron

Get the digital bundle and Solidworks files for a Telescopic Cabin Apron. Download is optimized for heavy duty construction, fewer components than the rest of the market (metal parts, screws), in accordance with 81.20/81.21 and 81.1/81.2.

The designs allow for easy assembly, disassembly and transport, a bolted construction concept without special construction knowledge or welding required. The bundle includes:

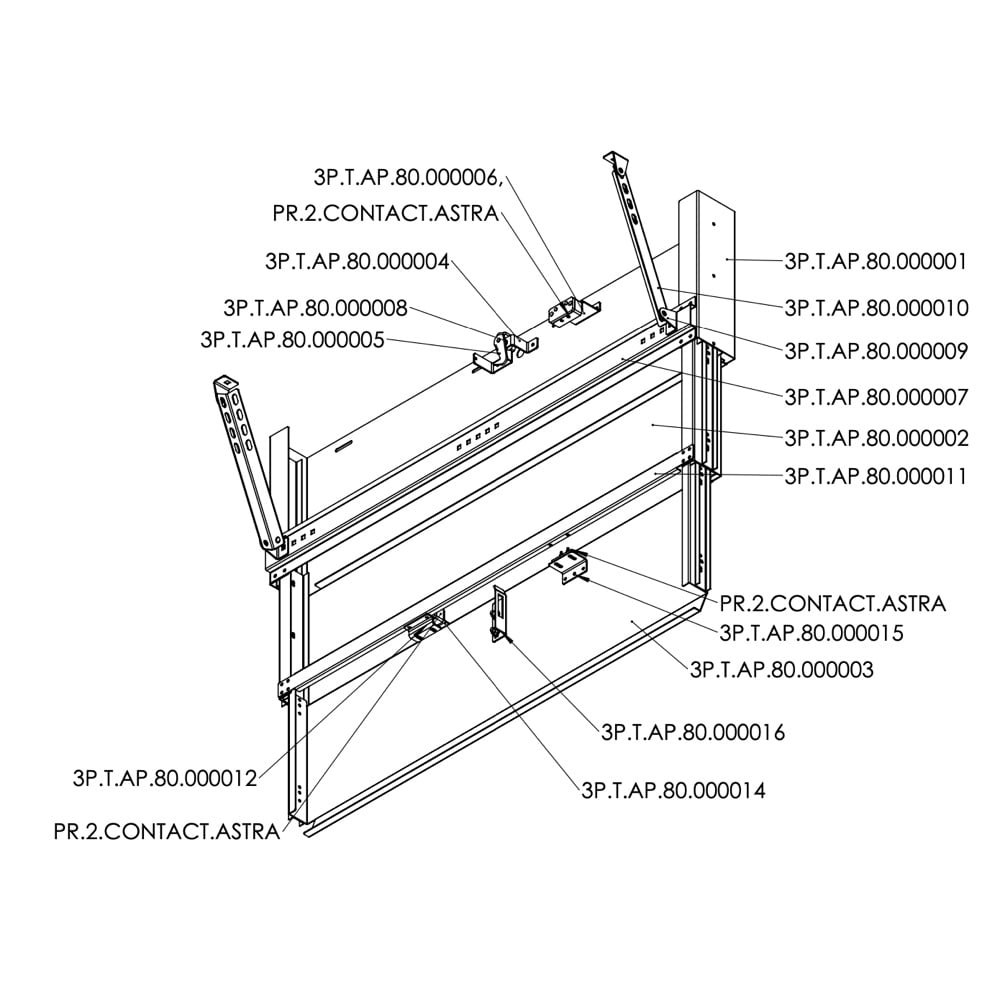

• CAD Drawings: 2D and 3D models (.edrw, .pdf), 3D renders (.png)
• Solidworks Files: Parts(.SLDPRT), Assemblies(.SLDASM), Drawings(.SLDDRW)
• Production files: Bill of Materials (.easm), Laser cutting, punching & CNC bending (.step, .dxf)

Telescopic Apron:

• Dimensions (mm): Height 310 mm, Depth: 80 mm, Opened: 800 mm, Closed 740 mm
• Dimensions (inches): Height 12.21'', Depth: 3.15'', Opened: 31.50'', Closed 29.14''
