Elevator Cabin (Cabin Inox, Apron Standard)

Get the full digital bundle and Solidworks files for an Elevator Inox Cabin and Standard Apron. Download includes same parts for all types, contemporary and clever design, fewer components than the rest of the market (metal parts, screws), construction in accordance with 81.20/81.21 and 81.1/81.2

The designs allow for easy assembly, disassembly and transport, a bolted construction concept without special construction knowledge or welding required, installation directly in the well. The bundle includes:

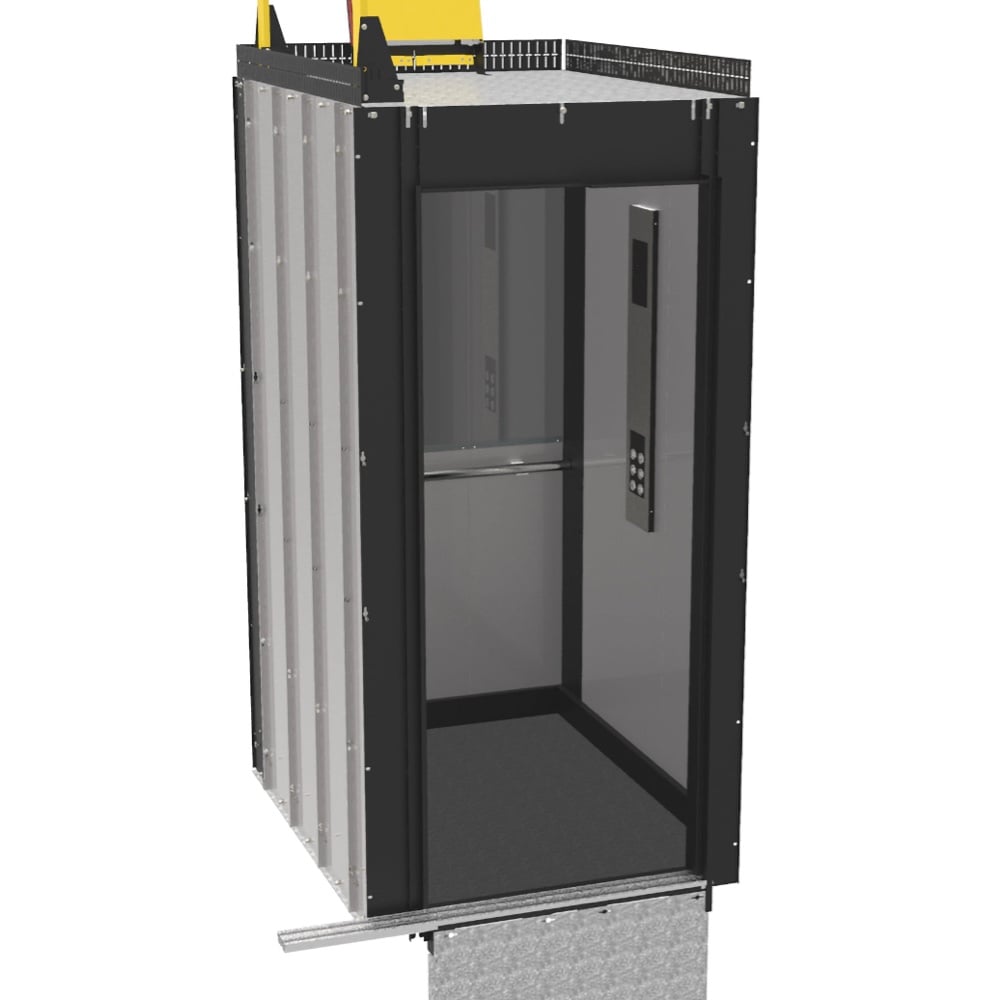

• CAD Drawings: 2D and 3D models (.edrw, .pdf), 3D renders (.png)
• Solidworks Files: Parts(.SLDPRT), Assemblies(.SLDASM), Drawings(.SLDDRW)
• Production files: Bill of Materials (.easm), Laser cutting, punching & CNC bending (.step, .dxf)

CABIN Inox - 1100x1400:

• Dimensions (mm): Height: 2300 mm, Width: 1100 mm, Depth: 1400 mm
• Dimensions (inches): Height: 90.55'', Width: 43.31'', Depth: 55.12''

or

CABIN Inox - 1200x1200:

• Dimensions (mm): Height: 2300 mm, Width: 1200 mm, Depth: 1200 mm
• Dimensions (inches): Height: 90.55'', Width: 47.24'', Depth: 47.24''

plus you get

CABIN Door:

• Dimensions (mm): Opening: 800 mm, Height: 2000 mm
• Dimensions (inches): Opening: 31.50'', Height: 78.74''

APRON Standard:

• Dimensions (mm): Height: 740 mm, Width: 800 mm
• Dimensions (inches): Height: 29.13'', Width: 31.50''

*balustrade & MRL not included in the downloaded files, only for completion
