Balustrade Full (Standard, Folding, Telescopic)

Get the full digital bundle and Solidworks files for Elevator Balustrades. Download includes Standard / Telescopic / Folding Balustrade plans, same parts for all types, optimized for heavy duty construction, fewer components than the rest of the market (metal parts, screws), in accordance with 81.20/81.21 and 81.1/81.2.

The designs allow for easy assembly, disassembly and transport, a bolted construction concept and one person working alone without special construction knowledge or welding required. The bundle includes:

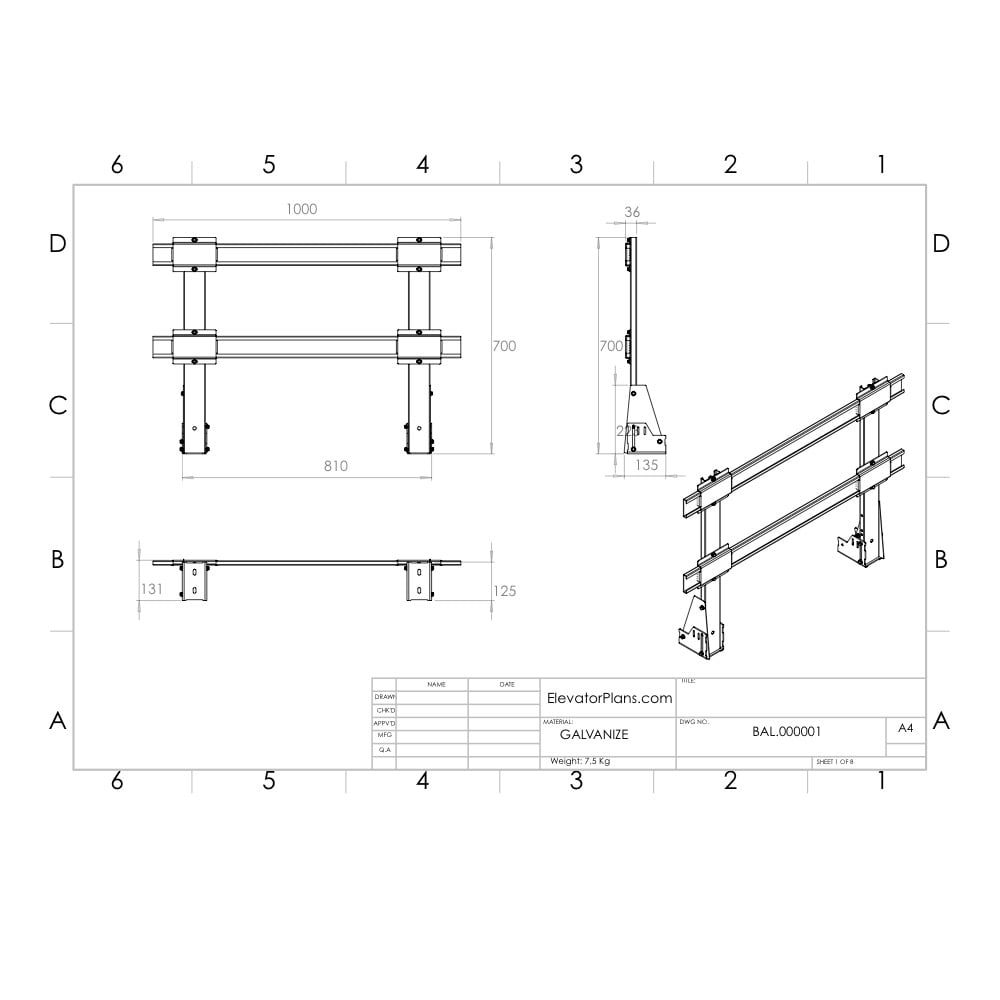

• CAD Drawings: 2D and 3D models (.edrw, .pdf), 3D renders (.png)
• Solidworks Files: Parts(.SLDPRT), Assemblies(.SLDASM), Drawings(.SLDDRW)
• Production files: Bill of Materials (.easm), Laser cutting, punching & CNC bending (.step, .dxf)

STANDARD BALUSTRADE:

• Dimensions (mm): Height: 700 mm, Width: 1000 mm
• Dimensions (inches): Height: 27.68'', Width: 39.37''

FOLDING BALUSTRADE:

• Dimensions (mm): Height: 1100 mm, Width: 1000 mm
• Dimensions (inches): Height: 43.43'', Width" 39.37''

TELESCOPIC BALUSTRADE:

• Dimensions (mm): Height: 671 mm to 1100 mm, Width: 1000 mm
• Dimensions (inches): Height: 26.42'' to 43.31'', Width: 39.37''
